ARKTEK H610M EG DDR4 Motherboard LGA 1700

ARKTEK H610M EG DDR4 Motherboard LGA 1700

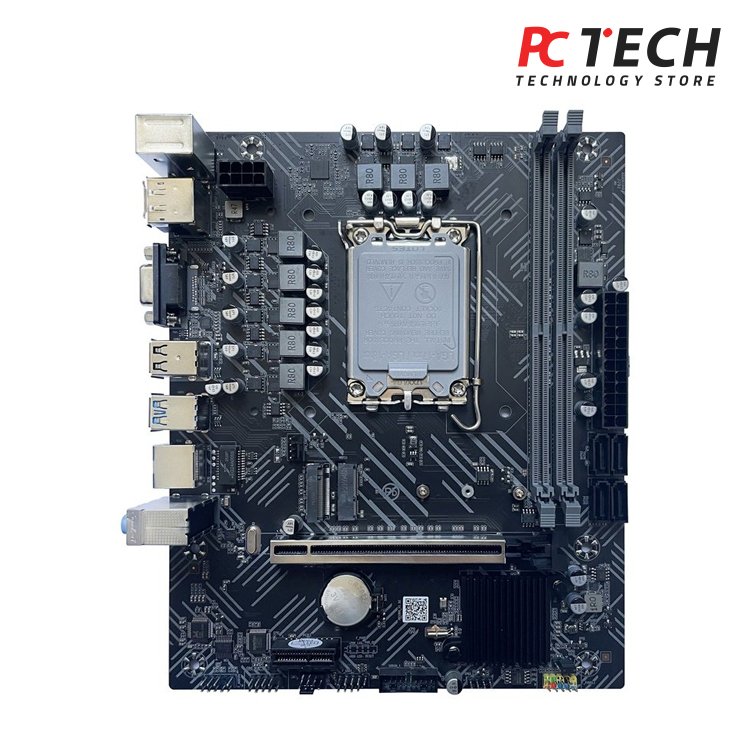

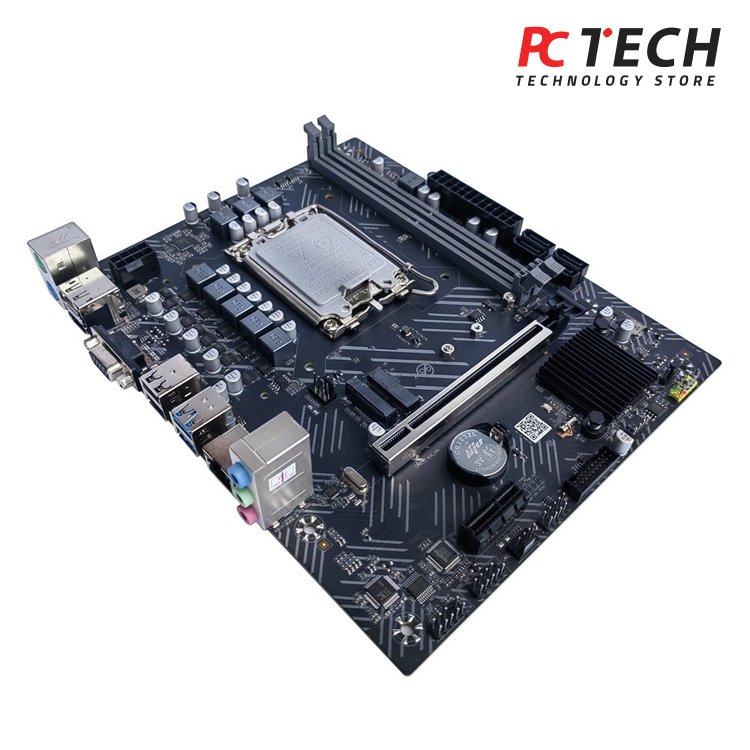

The ARKTEK H610M EG DDR4 Motherboard with LGA 1700 socket is a micro-ATX motherboard designed for Intel’s 12th and 13th generation Core processors, as well as Pentium and Celeron processors. Here’s a breakdown of its key features and specifications based on available information:

Key Features:

• Socket and Chipset:
  • Socket: LGA 1700
  • Chipset: Intel H610
  • Supports Intel Core i9, i7, i5, and i3 processors, as well as Pentium and Celeron CPUs for the LGA 1700 socket.
• Memory Support:
  • Dual Channel DDR4 memory support.
  • Memory speeds: 2133/2400/2800 MHz, with XMP overclocking support.
  • DIMM Slots: 2 x Memory Slots (maximum capacity up to 64GB, depending on configuration).
• Graphics:
  • Integrated Graphics Processor (Intel HD Graphics support, depending on the CPU).
  • Display outputs: 1 x HDMI 1.4b, 1 x DisplayPort 1.4, 1 x VGA.
• Expansion Slots:
  • 1 x PCI Express x16 slot (for GPUs or other expansion cards).
  • 1 x PCI Express x1 slot.
• Storage:
  • 4 x SATA 3.0 ports for traditional HDDs or SSDs.
  • 1 x M.2 port (supports M.2 SATA SSDs, and potentially NVMe depending on configuration).
  • 1 x M.2 Wi-Fi/Bluetooth port for wireless module expansion.
• Audio:
  • 3.5mm audio port with 5.1-channel support.
  • LED audio support for enhanced sound quality.
  • Built-in 6-channel HD audio chip.
• Networking:
  • LAN: Realtek 10/100 Mbps (Gigabit optional, depending on model).
  • Supports wake-on-LAN and PXE functions for network booting.
• I/O Ports:

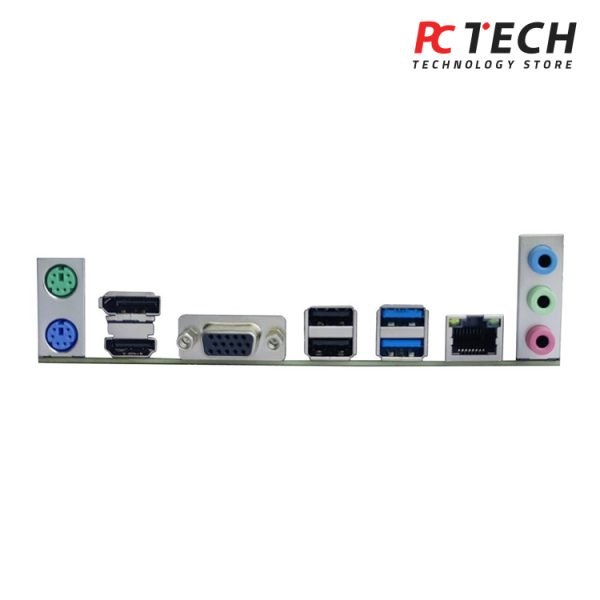

  • External I/O:
    • 1 x PS/2 mouse port, 1 x PS/2 keyboard port.
    • 1 x DP port, 1 x HDMI port, 1 x VGA port.
    • 2 x USB 2.0 ports, 2 x USB 3.0 ports.
    • 1 x RJ45 (LAN port).
    • 3 x Audio jacks.
