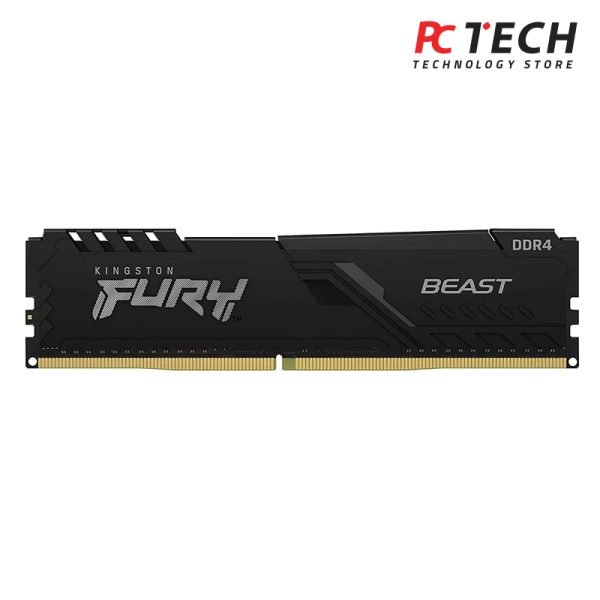

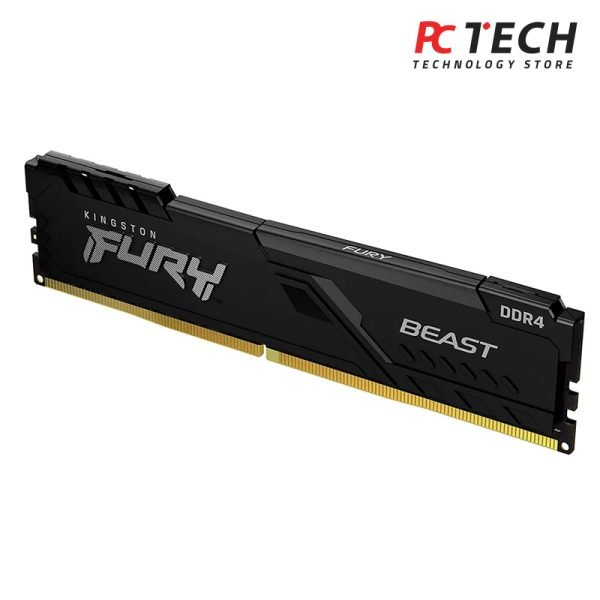

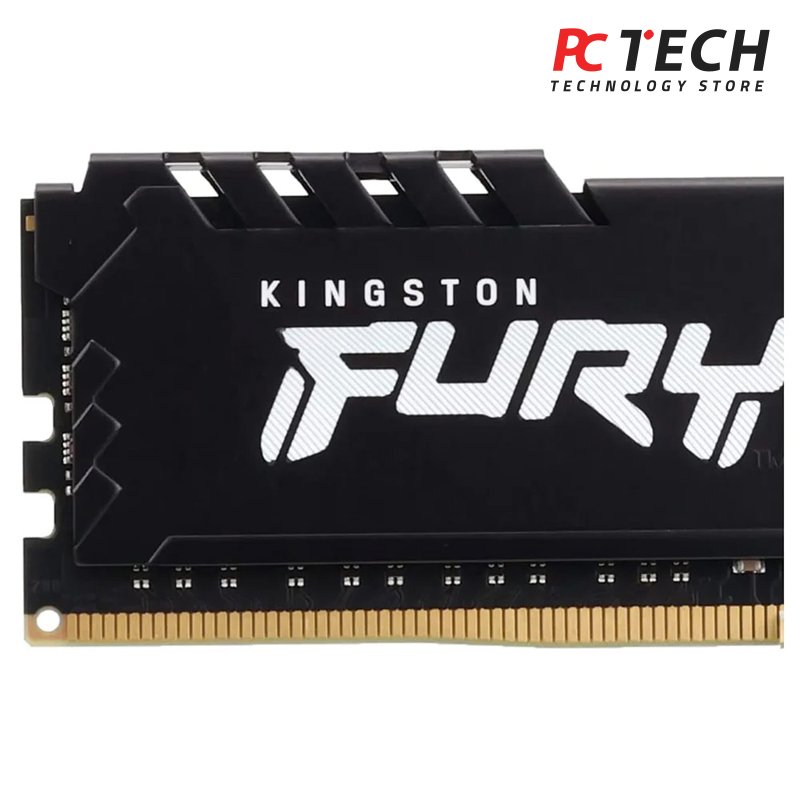

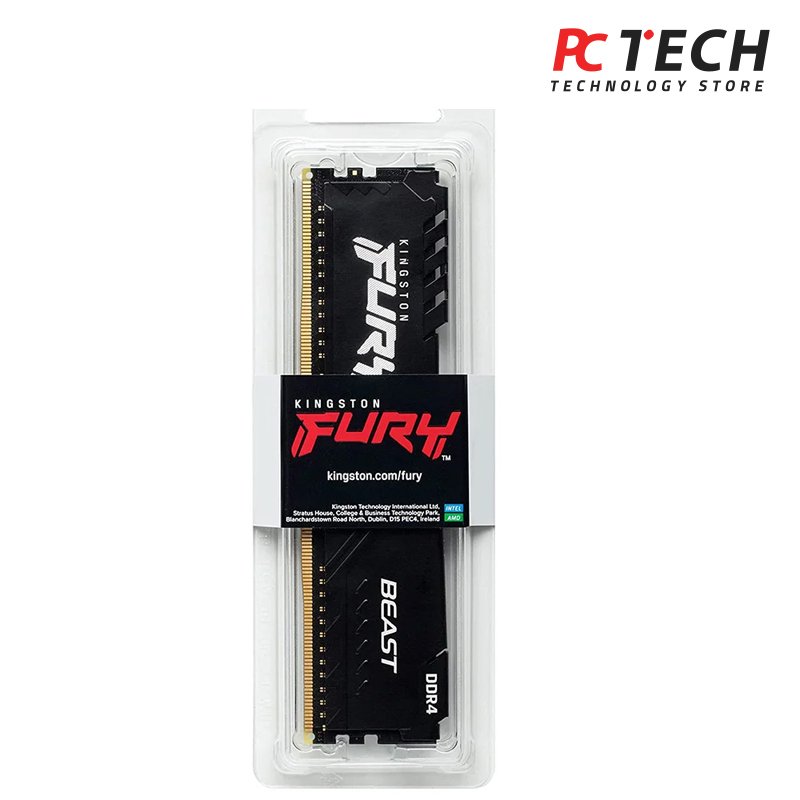

Kingston Fury Beast 8 GB 3200 MHz DDR4 CL16 Desktop Memory

Details

Capacity : 8GB

Type : 288-Pin DDR4 SDRAM

Speed : DDR4 3200 (PC4 25600)

CAS Latency : 18

Timing : 18-21-21

Voltage : 1.2V

Color : Black

Heat Spreader : Yes

Features : HyperX HX432C18FB2/8 is a 1G x 64-bit (8GB) DDR4-3200 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 18-21-21 at 1.2V.

KINGSTON TECHNOLOGY HYPERX FURY BLACK 8GB 3200MHZ DDR4 CL16

X432C18FB2/8
8GB 1G x 64-Bit
DDR4-3200 CL18 288-Pin DIMM
SPECIFICATIONS
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh Command Time (tRFCmin)
Row Active Time (tRASmin) Maximum Operating Power UL Rating
Operating Temperature Storage Temperature
18 cycles 45.75ns(min.) 350ns(min.)
24.375ns(min.) TBD W*
94 V – 0
0o C to +85o C -55o C to +100o C
y
in
DESCRIPTION
HyperX HX432C18FB2/8 is a 1G x 64-bit (8GB) DDR4-3200 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested

Document No.

continued
MODULE WITH HEAT SPREADER
133.35 mm
7.08 mm
MODULE DIMENSIONS
All measurements are in

KINGSTON TECHNOLOGY HYPERX FURY BLACK 8GB 3200MHZ DDR4 CL16

Detail A Detail B Detail D Detail E Detail C
Pin 35 Pin 47 Pin 105 Pin 117
2.10±0.15
3.00
3.35
64.60
56.10
28.90
22.95
The product images shown are for illustration purposes only and may not be an exact representation of the product. Kingston reserves the right to change any information at anytime without notice.
FOR MORE INFORMATION, GO TO HYPERXGAMING.COM
HyperX is a division of Kingston.
©2018 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708 USA.
All rights reserved. All trademarks and registered trademarks are the property of their respective owners.
Document No. 4808558A hyperxgaming.com
All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at the published HyperX memory speeds and timing settings. Overclocking or modifying your system timing may result in damage to computer components.
