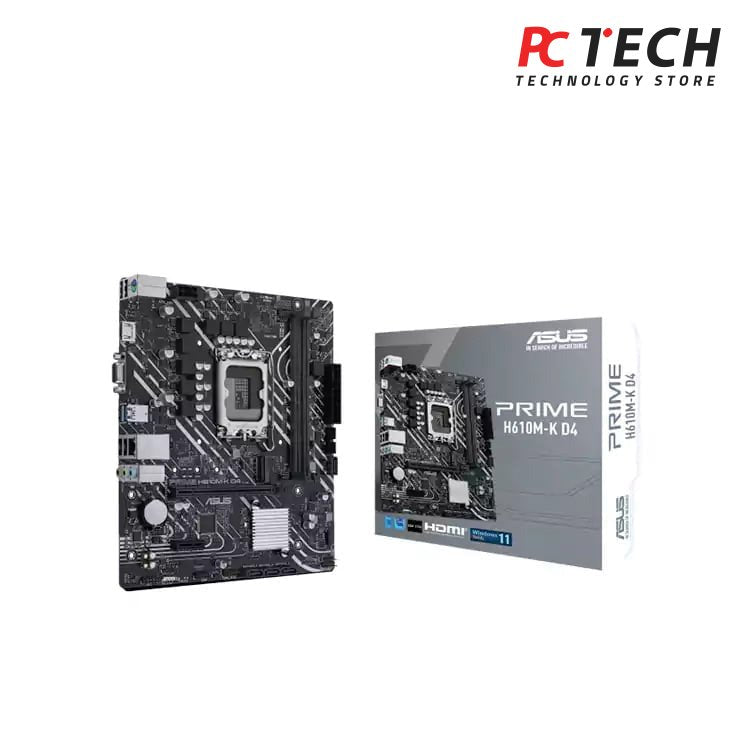

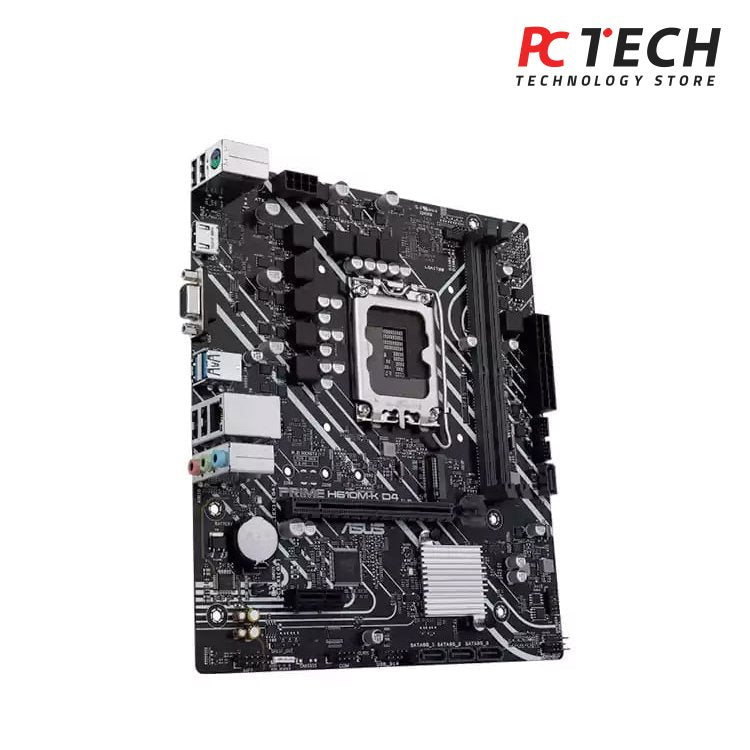

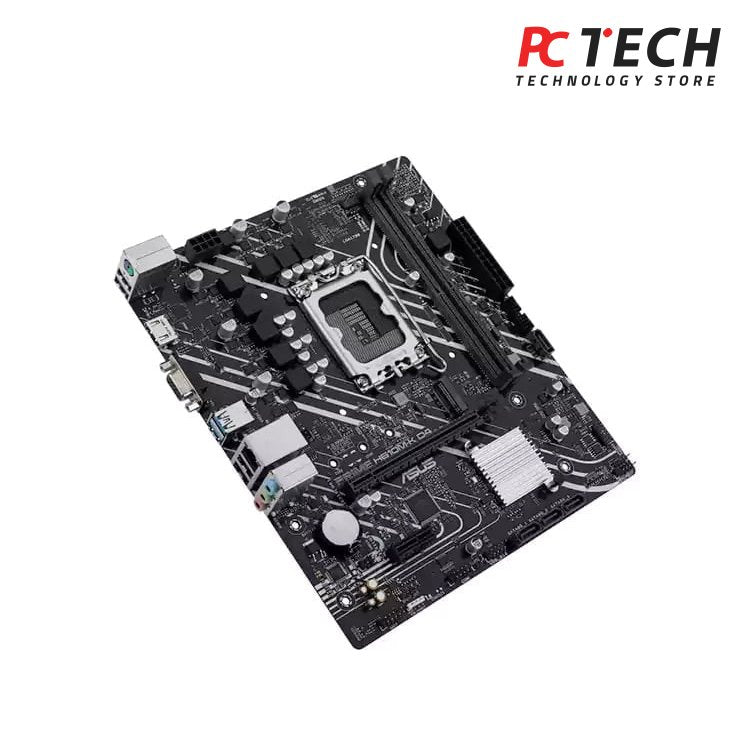

ASUS PRIME H610M-K D4
CPU
Asus PRIME H610M-K D4 Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Asus PRIME H610M-K D 4
Graphics
1 x D-Sub port1 x HDMI® port*** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot
Asus PRIME H610M-K D 4 Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 4 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Asus PRIME H610M-K D 4
Realtek 7.1 Surround Sound High Definition Audio CODEC*– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– Supports up to 24-Bit/192 kHz playbackAudio Features– Audio Shielding– Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)D-Sub port1 x HDMI® port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Asus PRIMEFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports
Asus PRIME H610M-K D 4
Special Features
ASUS 5X PROTECTION III– DIGI+ VRM– LANGuard– Overvoltage Protection– SafeSlot Core– Stainless-Steel Back I/OASUS Q-Design– Q-DIMM– Q-SlotASUS Thermal Solution– Aluminum heatsink designASUS Lighting Control– RGB header
Asus PRIME H610M-K D 4
Software Features
ASUS Exclusive SoftwareArmoury CrateAI Suite 3– Performance And Power Saving UtilityTurboV EVOAsus PRIMEEPUDIGI+ VRMFan XpertASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRAR
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

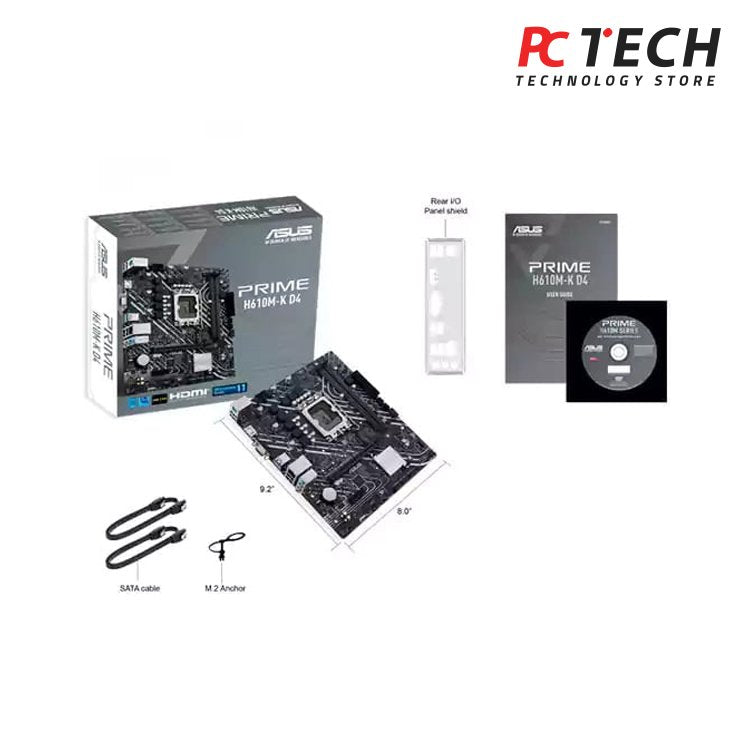

Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 ANCHORAsus PRIMEInstallation Media1 x Support DVDDocumentation1 x User Guide
Asus PRIME H610M-K D 4
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
