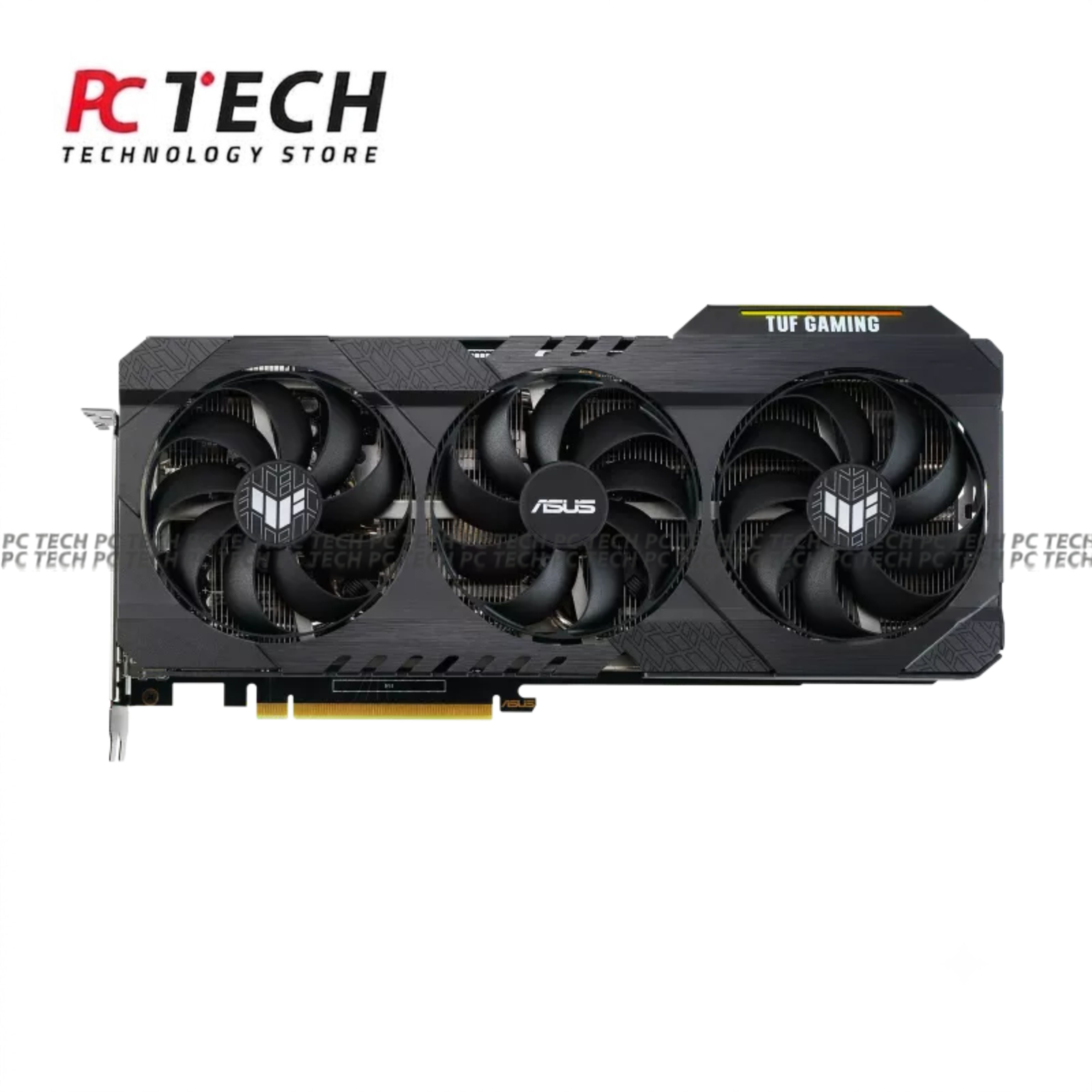

ASUS TUF Gaming GeForce RTX 3060 12GB GDDR6 Graphics Card
The ASUS TUF Gaming GeForce RTX 3060 12GB is a performance-focused graphics card built for modern gaming, high-resolution multimedia, content creation, and GPU-accelerated applications.
Powered by the NVIDIA GeForce RTX 3060, this TUF Gaming model combines 3584 CUDA cores, 12GB of GDDR6 memory, a 192-bit memory interface, and PCI Express 4.0 connectivity for a strong balance of gaming performance and graphics memory capacity.
NVIDIA GeForce RTX 3060 Performance
The ASUS TUF Gaming RTX 3060 uses NVIDIA's GeForce RTX 3060 GPU with 3584 CUDA cores and 12GB of GDDR6 memory.
Its large 12GB VRAM capacity makes it well suited for modern games, high-resolution textures, content creation, 3D workloads, and other graphics-intensive applications.
12GB GDDR6 Memory
The graphics card includes 12GB of GDDR6 memory running at 15 Gbps across a 192-bit memory interface.
This provides substantial graphics memory capacity for modern gaming and demanding GPU workloads.
Up to 1807MHz Boost Clock
The official TUF-RTX3060-12G-GAMING specification provides a 1777MHz Boost Clock in Gaming Mode and up to 1807MHz in OC Mode.
These specifications are specific to the standard TUF Gaming model and should not be confused with the faster TUF Gaming OC Edition.
Triple Axial-Tech Cooling
The TUF Gaming RTX 3060 uses three Axial-tech fans with dual-ball fan bearings.
ASUS also uses a fan-stop mode that can stop the fans under light loads and lower temperatures, while the card's large heatsink and 2.7-slot design provide substantial cooling capacity.
Durable TUF Gaming Design
ASUS builds the card around an all-metal shroud, reinforced construction, TUF components, Auto-Extreme manufacturing technology, and a ventilated backplate.
The design focuses on cooling efficiency, structural durability, and reliable long-term operation.
HDMI 2.1 & DisplayPort 1.4a
The ASUS TUF Gaming RTX 3060 provides extensive display connectivity with 2 × HDMI 2.1 ports and 3 × DisplayPort 1.4a ports.
The card supports up to four simultaneous displays and a maximum digital resolution of 7680 × 4320.
Power Requirements
ASUS specifies a single 8-pin power connector and recommends a 650W power supply for this model.
Actual system power requirements depend on the processor, other components, and overall configuration.
Important Notice
This product is supplied as a Tray Version.
Tray products may not include the same retail packaging or bundled accessories as a retail boxed product. Included accessories should therefore be confirmed from the actual stock supplied.
This listing is based on the official ASUS TUF-RTX3060-12G-GAMING specifications, not the TUF-RTX3060-O12G-GAMING OC Edition.
Specifications
Brand: ASUS
Series: TUF Gaming
Official Model: TUF-RTX3060-12G-GAMING
GPU: NVIDIA GeForce RTX 3060
CUDA Cores: 3584
Video Memory: 12GB GDDR6
Memory Speed: 15 Gbps
Memory Interface: 192-bit
Bus Standard: PCI Express 4.0
Gaming Mode Boost Clock: 1777 MHz
OC Mode Boost Clock: 1807 MHz
HDMI: 2 × HDMI 2.1
DisplayPort: 3 × DisplayPort 1.4a
HDCP: 2.3
Maximum Displays: 4
Maximum Digital Resolution: 7680 × 4320
OpenGL: 4.6
Power Connector: 1 × 8-Pin
Recommended PSU: 650W
Slot Size: 2.7 Slot
Dimensions: 301 × 143 × 54 mm
Aura Sync: ARGB
Package Type: Tray
The ASUS TUF Gaming GeForce RTX 3060 12GB GDDR6 Tray Version combines 12GB of graphics memory, 3584 CUDA cores, triple-fan TUF cooling, PCIe 4.0 connectivity, and extensive HDMI and DisplayPort connectivity for gaming and high-performance desktop builds.
