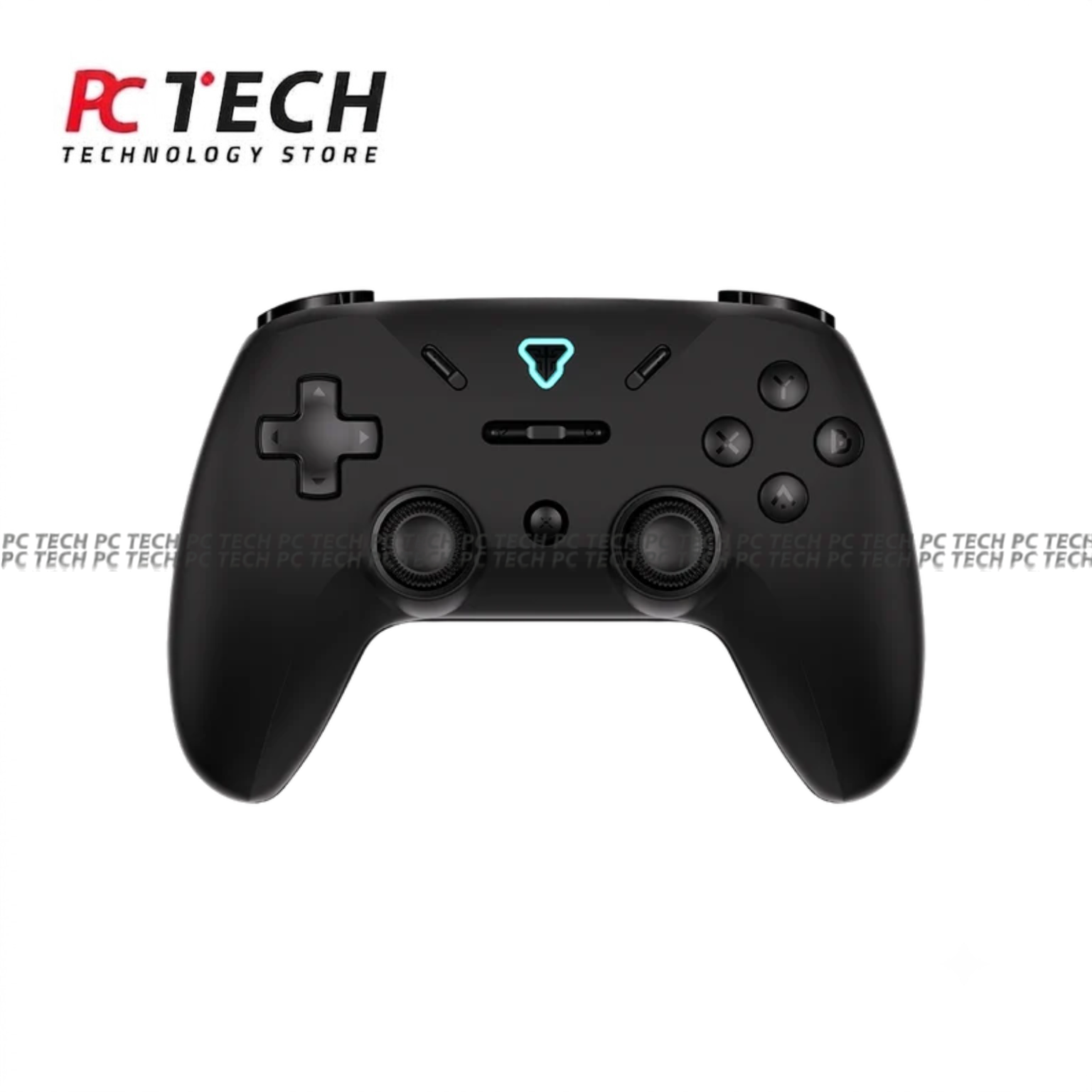

FANTECH REVOLVER III WGP12S Wireless Gamepad Black
The FANTECH REVOLVER III WGP12S is a multi-platform wireless gaming controller designed for responsive gameplay, accurate analog control, and advanced customization.
Featuring Hall-Effect analog sticks and triggers, up to 1000Hz polling rate in both wired and wireless modes, motion sensing, programmable controls, rear paddles, adjustable vibration, and dedicated software support, the REVOLVER III is built for competitive and everyday gaming.
Key Features
- Multi-Platform Wireless Gamepad
- Up to 1000Hz Polling Rate
- 1000Hz Wired & Wireless Modes
- Hall-Effect Analog Sticks
- Hall-Effect Triggers
- Motion Sensor
- 22 Total Keys
- 12 Programmable Buttons
- 2 Mappable Rear Paddles
- 3-Level Adjustable Turbo
- 4-Level Adjustable Rumble Vibration
- Timed Macro Support
- 600mAh Rechargeable Li-ion Battery
- Dual USB-C / USB-A Wireless Dongle
- Dedicated Gamepad Software
- Windows, Switch, Android and PS3 Support
- Black Color
Hall-Effect Sticks
The REVOLVER III uses Hall-Effect analog sticks designed to provide precise movement without relying on conventional physical potentiometer contact.
This magnetic sensing technology is designed to reduce wear-related drift and maintain accurate control over time.
Hall-Effect Triggers
Hall-Effect technology is also used for the controller's triggers, delivering smooth and accurate trigger input for supported games.
This is especially useful for games where trigger travel and sensitivity affect acceleration, braking, aiming, or other analog actions.
Up to 1000Hz Polling Rate
The REVOLVER III supports polling rates of up to 1000Hz in both wired and wireless modes.
This allows the controller to report input to the connected system at a high frequency for more responsive gameplay.
Motion Sensor
A built-in motion sensor detects movements such as tilt, rotation, and directional motion.
Motion control can provide an additional input method in compatible games and platforms.
Dual USB-C / USB-A Dongle
The supplied wireless receiver supports both USB-C and USB-A connectivity, providing additional flexibility across supported devices.
The controller is compatible with:
- Windows 7 or Later
- Nintendo Switch
- Android
- PlayStation 3
Compatibility and individual features may vary depending on the platform and game.
2 Mappable Rear Paddles
Two rear paddles can be mapped to supported actions.
This allows frequently used controls to be accessed without requiring the player to move their thumbs away from the analog sticks.
12 Programmable Buttons
The controller supports 12 programmable buttons through its customization system.
Button mappings and supported actions can be configured to match different games and personal control preferences.
Timed Macros
The REVOLVER III supports timed macro recording.
Macros can record up to 63 keystrokes within a five-minute sequence, including the timing between inputs.
This allows more detailed and accurately timed command sequences.
Adjustable Turbo Mode
The built-in Turbo function offers 3 adjustable levels, allowing supported buttons to repeat inputs at different rates.
Adjustable Vibration
The controller features rumble feedback with 4 adjustable vibration levels.
Users can customize vibration intensity depending on their preference and supported game.
Dedicated Software
FANTECH provides dedicated software for the REVOLVER III.
Supported customization includes:
- Button Mapping
- Trigger Sensitivity
- Stick Response Curves
- Vibration Adjustment
- Programmable Controls
- Macro Configuration
Rechargeable Battery
The REVOLVER III includes a built-in 600mAh Li-ion rechargeable battery rated at 3.7V.
Specifications
Brand: FANTECH
Model: WGP12S
Series: REVOLVER III
Product Type: Wireless Gaming Controller
Color: Black
Connectivity: Wireless / Wired
Polling Rate: Up to 1000Hz Wired & Wireless
Analog Sticks: Hall-Effect
Triggers: Hall-Effect
Motion Sensor: Yes
Total Keys: 22
Programmable Buttons: 12
Rear Paddles: 2 Mappable Paddles
Turbo: 3-Level Adjustable
Vibration: 4-Level Adjustable Rumble
Face Buttons: Membrane
Battery: 600mAh Li-ion
Voltage: 3.7V
Wireless Receiver: Dual USB-C / USB-A Dongle
Compatibility: Windows 7 or Later / Switch / Android / PS3
Dimensions: 160 × 108 × 69 mm
Weight: 205 ± 3g
The FANTECH REVOLVER III WGP12S Wireless Gamepad Black combines Hall-Effect control, 1000Hz input, motion sensing, programmable buttons, rear paddles, adjustable vibration, and multi-platform support in one customizable controller.
