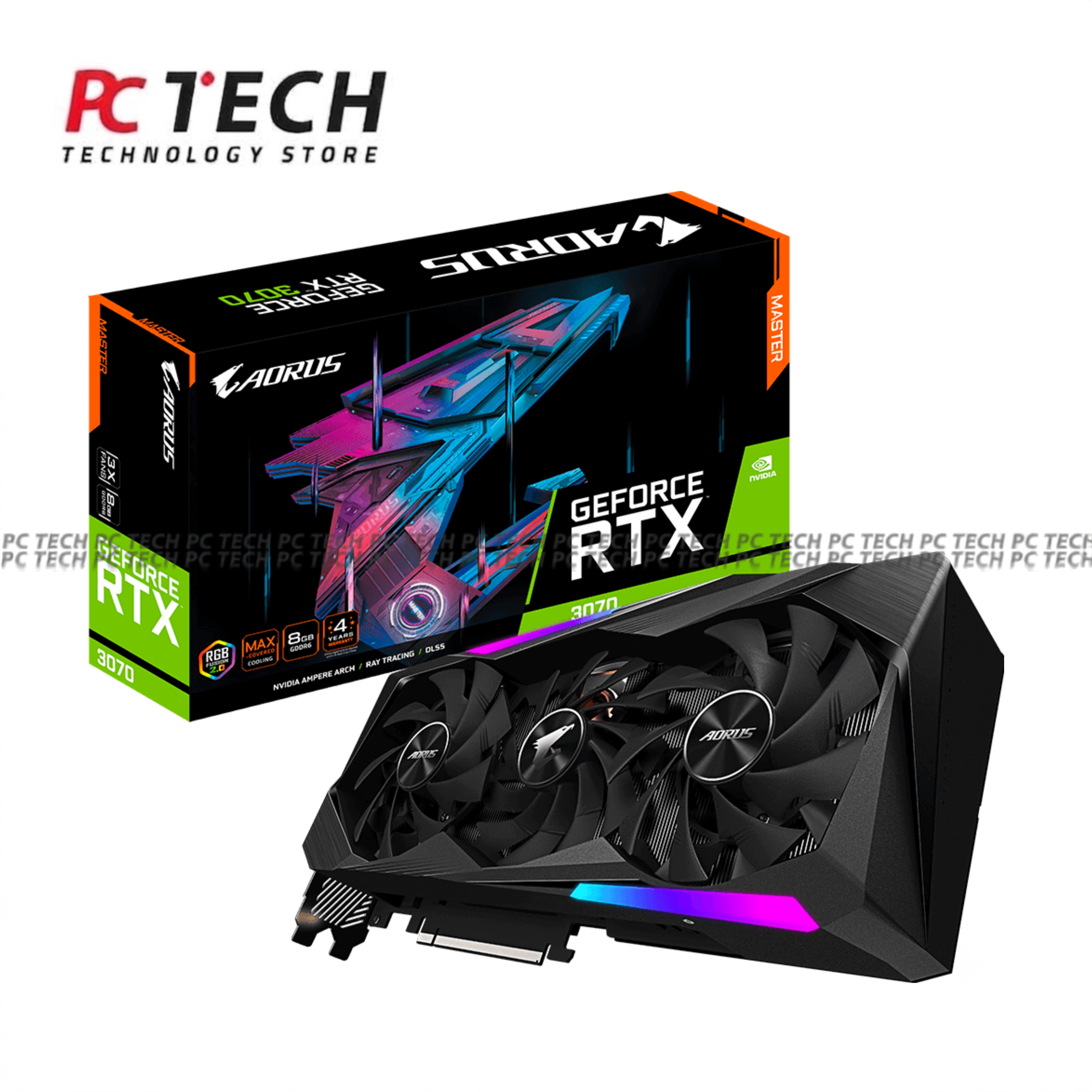

GIGABYTE AORUS GeForce RTX 3070 MASTER 8GB GDDR6 Graphics Card
The GIGABYTE AORUS GeForce RTX 3070 MASTER 8GB is a premium gaming graphics card combining NVIDIA GeForce RTX 3070 performance with AORUS cooling, RGB lighting, and an integrated LCD display.
It features 5888 CUDA cores, 8GB GDDR6 memory, a 256-bit memory interface, and an enhanced 1845MHz core clock.
Key Features
- NVIDIA GeForce RTX 3070
- 5888 CUDA Cores
- 8GB GDDR6 Memory
- 256-Bit Memory Interface
- 14Gbps Memory Speed
- 448GB/s Memory Bandwidth
- 1845MHz Core Clock
- PCI Express 4.0 x16
- MAX-COVERED Cooling
- LCD Edge View
- RGB Fusion 2.0
- Metal Backplate
- Dual BIOS
- Multiple HDMI & DisplayPort Outputs
- Box Version
AORUS Performance
The AORUS MASTER RTX 3070 operates at 1845MHz, compared with NVIDIA's 1725MHz reference specification.
Its 8GB GDDR6 memory provides 448GB/s memory bandwidth across a 256-bit interface.
MAX-COVERED Cooling
AORUS uses its MAX-COVERED cooling system with a large triple-fan design to provide cooling across the GPU and surrounding components.
LCD Edge View
The card features an integrated LCD Edge View display, allowing supported system information, graphics, and customized content to be displayed directly on the graphics card. GIGABYTE also includes RGB Fusion 2.0 lighting control.
Display Connectivity
Official Rev. 1.0/1.1 specifications include:
- 3 × DisplayPort 1.4a
- 2 × HDMI 2.1
- 1 × HDMI 2.0
- Up to 4 Simultaneous Displays
Specifications
Brand: GIGABYTE
Gaming Brand: AORUS
Series: MASTER
GPU: NVIDIA GeForce RTX 3070
CUDA Cores: 5888
Video Memory: 8GB GDDR6
Memory Speed: 14Gbps
Memory Interface: 256-bit
Memory Bandwidth: 448GB/s
Core Clock: 1845MHz
Interface: PCI Express 4.0 x16
Maximum Resolution: 7680 × 4320
Recommended PSU: 650W
Power Connectors: 2 × 8-Pin
Card Dimensions: 290 × 131 × 60 mm
RGB: RGB Fusion 2.0
LCD Display: Yes
Package Type: Box
Important Notice
The AORUS RTX 3070 MASTER 8G exists in multiple hardware revisions, including Rev. 1.0/1.1 and Rev. 2.0. Rev. 2.0 is officially identified by GIGABYTE as an LHR version, while the product name you supplied does not specify revision. Therefore, we're deliberately not putting LHR or a revision number in the Shopify title until the sticker/box confirms it.
