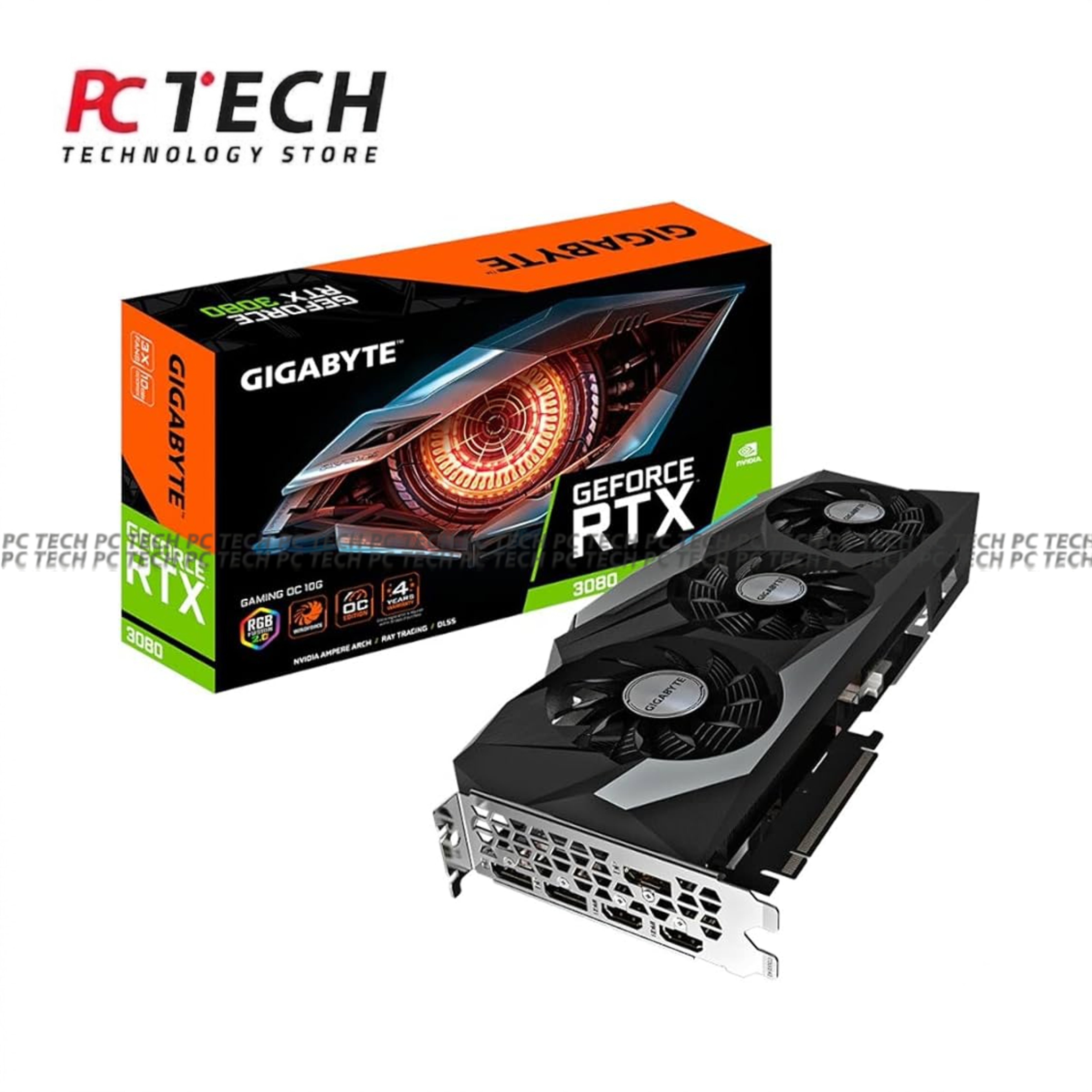

GIGABYTE GeForce RTX 3080 Gaming OC 10GB GDDR6X Graphics Card
The GIGABYTE GeForce RTX 3080 Gaming OC 10GB is a high-performance graphics card designed for demanding gaming, high-resolution workloads, streaming, and content creation.
Powered by the NVIDIA GeForce RTX 3080, it features 8704 CUDA cores, 10GB GDDR6X memory, a 320-bit memory interface, and a factory core clock of 1800MHz.
Key Features
- NVIDIA GeForce RTX 3080
- 8704 CUDA Cores
- 10GB GDDR6X Memory
- 320-Bit Memory Interface
- 19Gbps Memory Speed
- 760GB/s Memory Bandwidth
- 1800MHz Core Clock
- PCI Express 4.0 x16
- WINDFORCE 3X Cooling
- Alternate Spinning Fans
- RGB Fusion 2.0
- Protection Metal Backplate
- 2 × HDMI 2.1
- 3 × DisplayPort 1.4a
- Tray Version
RTX 3080 Performance
The GIGABYTE Gaming OC uses NVIDIA's GeForce RTX 3080 with 8704 CUDA cores and 10GB of high-speed GDDR6X memory.
The card operates at 1800MHz, compared with the 1710MHz NVIDIA reference clock.
10GB GDDR6X Memory
The card provides:
Memory: 10GB GDDR6X
Memory Speed: 19Gbps
Memory Bus: 320-bit
Bandwidth: 760GB/s
WINDFORCE 3X Cooling
GIGABYTE equips the Gaming OC with WINDFORCE 3X cooling, featuring three fans with alternate spinning technology and a large cooling assembly.
RGB Fusion 2.0 lighting and a protective metal backplate are also part of the official Gaming OC design.
Connectivity
- 3 × DisplayPort 1.4a
- 2 × HDMI 2.1
- Maximum Resolution: 7680 × 4320
- Up to 4 Displays
Specifications
Brand: GIGABYTE
Series: Gaming OC
GPU: NVIDIA GeForce RTX 3080
CUDA Cores: 8704
Video Memory: 10GB GDDR6X
Memory Speed: 19Gbps
Memory Interface: 320-bit
Memory Bandwidth: 760GB/s
Core Clock: 1800MHz
Interface: PCI Express 4.0 x16
Recommended PSU: 750W
Power Connectors: 2 × 8-Pin
Outputs: 3 × DisplayPort 1.4a / 2 × HDMI 2.1
Dimensions: 320 × 129 × 55 mm
Package Type: Tray
Important Notice
This product is supplied as a Tray Version. The GIGABYTE Gaming OC RTX 3080 10GB exists in more than one board revision, so the exact revision/LHR status should be confirmed from the physical product before adding it to the listing. The major specifications above are shared by the official 10GB Gaming OC versions.
