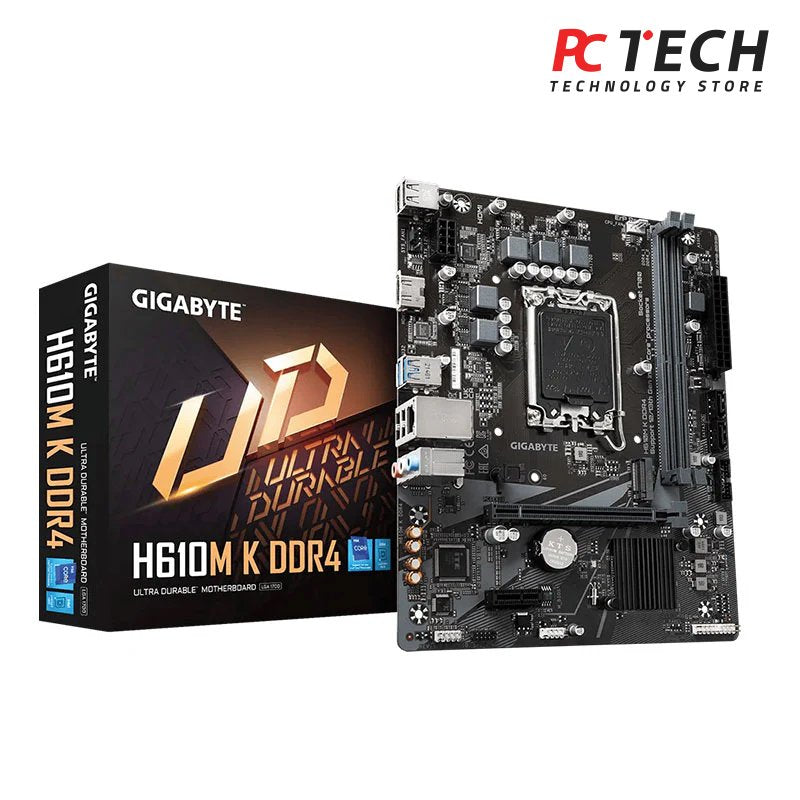

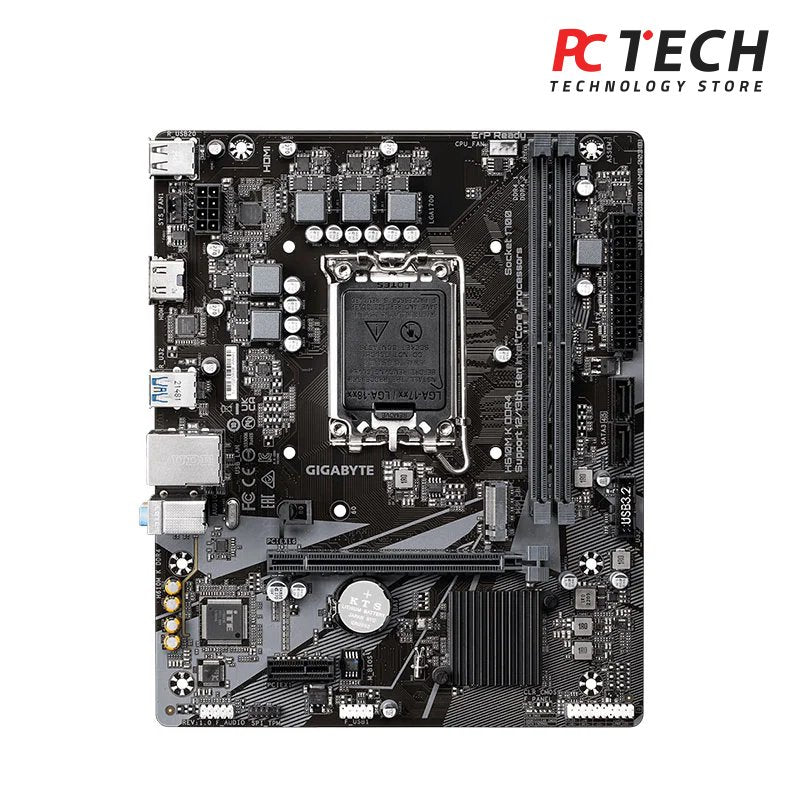

GIGABYTE H610M K DDR4 MOTHERBOARD

The GIGABYTE H610M K DDR4 Motherboard is a compact and affordable motherboard designed to support Intel 12th, 13th, and 14th generation Core processors (LGA 1700 socket). It is an entry-level motherboard, perfect for users who need a reliable, budget-friendly solution for general computing, light gaming, or office work. Here's a detailed overview of its features and specifications:

Key Features:

CPU Support:

• LGA 1700 Socket: Supports Intel Core 12th, 13th, and 14th Gen processors, including Pentium Gold and Celeron processors.
• The motherboard offers compatibility with a wide range of CPUs, from budget Celeron processors to high-performance Intel Core i9/i7/i5 processors, depending on your needs.

Memory:

• 2 x DDR4 DIMM Slots:
  • Supports up to 64GB of DDR4 RAM (32GB per DIMM).
  • Compatible with DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules.
  • Dual Channel memory architecture for improved performance.
  • Supports ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules (non-ECC mode).
  • XMP Support: You can enable Extreme Memory Profiles (XMP) for better memory performance if supported by your RAM.

Graphics:

• Integrated Graphics:
  • Supports Intel HD Graphics (depending on the CPU installed).
  • Offers 1 x HDMI port supporting a maximum resolution of 4096x2160@60Hz (4K).
  • HDMI 2.1 support with HDCP 2.3, enabling high-quality video output.
  • The graphics specifications depend on the specific CPU used (especially for integrated graphics).

Storage:

• 1 x M.2 Connector (PCIe 3.0 x4):
  • For fast M.2 NVMe SSD storage, improving boot times and file access speeds.
  • Supports 2280/2260 form factors.
• 2 x SATA 6Gb/s Connectors:
  • For traditional SSDs or HDDs for additional storage.

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot (from the CPU):
  • Ideal for a graphics card or other high-speed expansion cards. This slot supports PCIe 4.0, providing faster data throughput for modern GPUs and devices.
• 1 x PCIe 3.0 x1 Slot (from the chipset):
  • For other expansion cards, such as network adapters, sound cards, or Wi-Fi cards.

LAN:

• Realtek GbE LAN (1 Gbps/100 Mbps):
  • Provides reliable Gigabit Ethernet connectivity for internet browsing, online gaming, and networking tasks.

Audio:

• Realtek Audio Codec:
  • High Definition Audio with support for 2/4/5.1/7.1-channel audio.
  • The audio jack functionality can be configured using audio software to enable 7.1 surround sound.

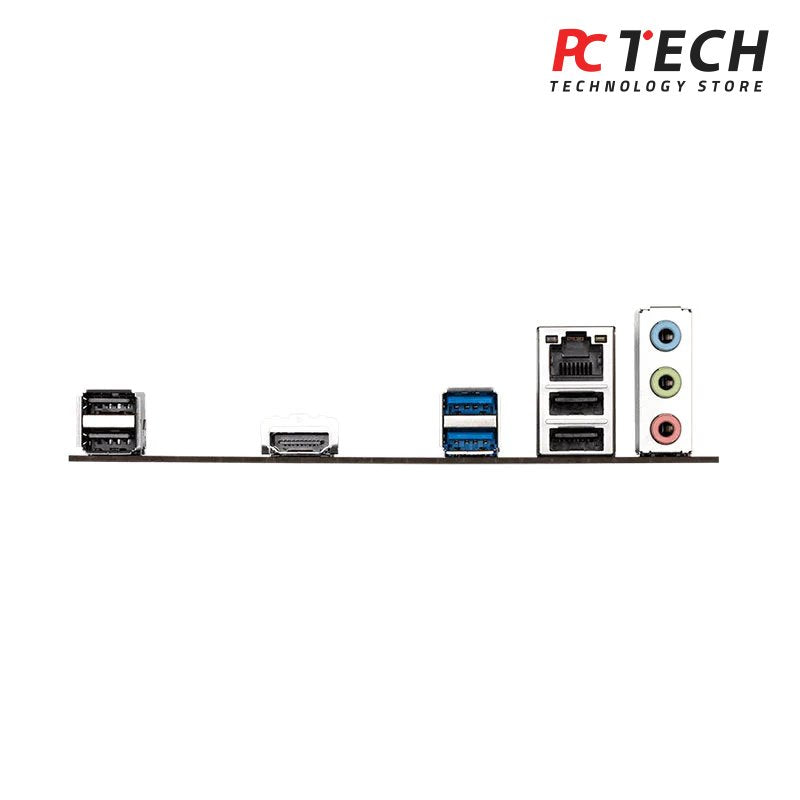

USB Ports:

• 4 x USB 3.2 Gen 1 Ports:
  • 2 on the back panel and 2 through internal headers.
• 6 x USB 2.0/1.1 Ports:
  • 4 on the back panel and 2 through internal headers.

Internal I/O Connectors:

• 1 x 24-pin ATX power connector: For connecting the power supply.
• 1 x 8-pin ATX 12V power connector: For CPU power.
• 1 x CPU Fan Header: For CPU cooling fan.
• 1 x System Fan Header: For additional case fans.
• 1 x M.2 Socket 3 connector: For an additional M.2 storage device.
• 2 x SATA 6Gb/s Connectors: For traditional storage devices.
• 1 x Front Panel Header: For connecting the front panel buttons and LEDs.
• 1 x Front Panel Audio Header: For connecting front audio ports.
• 1 x USB 3.2 Gen 1 Header: For front USB ports.
• 1 x USB 2.0/1.1 Header: For additional front USB ports.
