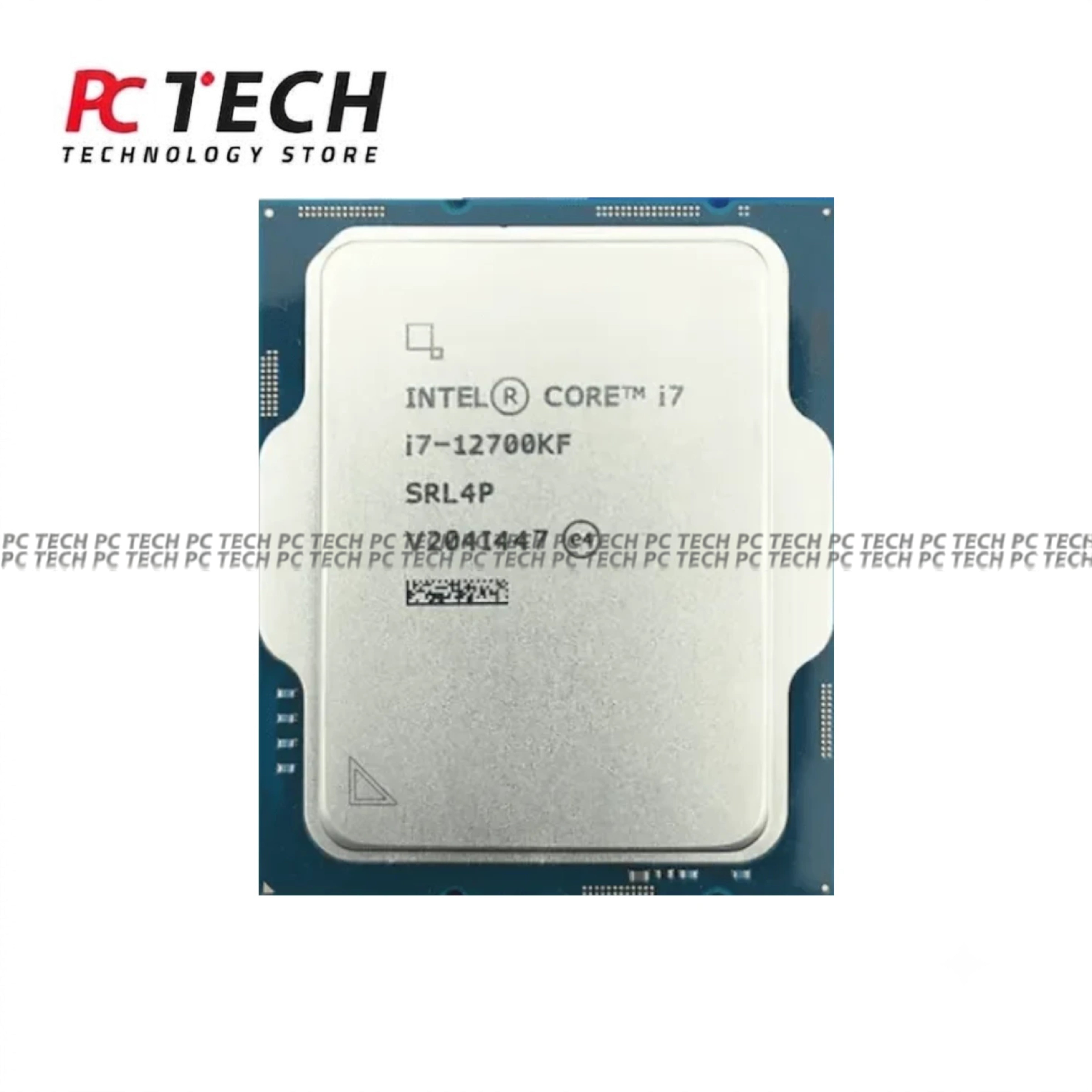

Intel Core i7-12700KF 12-Core 20-Thread Desktop Processor
The Intel Core i7-12700KF is a high-performance 12th Generation desktop processor designed for gaming, content creation, streaming, multitasking, and demanding productivity workloads.
Based on Intel's Alder Lake architecture, the processor combines 8 Performance-cores and 4 Efficient-cores for a total of 12 cores and 20 threads.
Hybrid Core Architecture
The Intel Core i7-12700KF uses a hybrid architecture with:
- 8 Performance-cores
- 4 Efficient-cores
- 12 Total Cores
- 20 Total Threads
This design allows demanding foreground workloads and background tasks to be handled efficiently.
Up to 5.00GHz Turbo Frequency
The processor can reach a maximum turbo frequency of 5.00GHz using Intel Turbo Boost Max Technology 3.0.
Official clock specifications include:
- P-Core Base Clock: 3.60GHz
- P-Core Max Turbo: 4.90GHz
- E-Core Base Clock: 2.70GHz
- E-Core Max Turbo: 3.80GHz
-
Maximum Turbo Frequency: 5.00GHz Intel
25MB Intel Smart Cache
The Core i7-12700KF includes:
- 25MB Intel Smart Cache
- 12MB Total L2 Cache
This cache configuration helps support fast gaming and multi-threaded workloads. Intel
DDR5 & DDR4 Memory Support
The processor supports both:
- DDR5 up to 4800 MT/s
- DDR4 up to 3200 MT/s
- Dual-Channel Memory
- Up to 128GB Maximum Memory
Actual memory support depends on the motherboard used. Intel
PCI Express 5.0 Support
The i7-12700KF supports both PCI Express 5.0 and PCI Express 4.0, with up to 20 PCIe lanes available directly from the processor.
Official supported configurations include up to:
Unlocked for Overclocking
The K suffix identifies this processor as an unlocked model, allowing CPU tuning and overclocking when used with compatible hardware and cooling.
No Integrated Graphics
The F suffix means the Intel Core i7-12700KF does not include integrated graphics.
A dedicated graphics card is required for display output.
Power Requirements
Processor Base Power: 125W
Maximum Turbo Power: 190W
A suitable CPU cooler and adequate system power delivery are recommended for sustained high-performance workloads. Intel
Tray Version
This product is supplied as a Tray Version.
Intel officially lists a tray variant of the i7-12700KF under ordering code CM8071504553829. Tray processors may not include the same retail packaging or bundled accessories as boxed processors. Intel
Specifications
Brand: Intel
Processor: Core i7-12700KF
Generation: 12th Gen
Architecture: Alder Lake
Lithography: Intel 7
Socket: LGA1700
Total Cores: 12
Performance Cores: 8
Efficient Cores: 4
Total Threads: 20
Max Turbo Frequency: 5.00GHz
P-Core Max Turbo: 4.90GHz
E-Core Max Turbo: 3.80GHz
P-Core Base Clock: 3.60GHz
E-Core Base Clock: 2.70GHz
Intel Smart Cache: 25MB
L2 Cache: 12MB
Processor Base Power: 125W
Maximum Turbo Power: 190W
Memory Support: DDR5-4800 / DDR4-3200
Maximum Memory: 128GB
Memory Channels: 2
PCI Express: PCIe 5.0 / PCIe 4.0
Maximum PCIe Lanes: 20
Integrated Graphics: No
Unlocked: Yes
Maximum Operating Temperature: 100°C
Official Tray Ordering Code: CM8071504553829
Package Type: Tray
The Intel Core i7-12700KF Tray Version combines 12 hybrid cores, 20 threads, up to 5.0GHz turbo performance, DDR5 and DDR4 support, and PCIe 5.0 connectivity for high-performance gaming and desktop builds.
