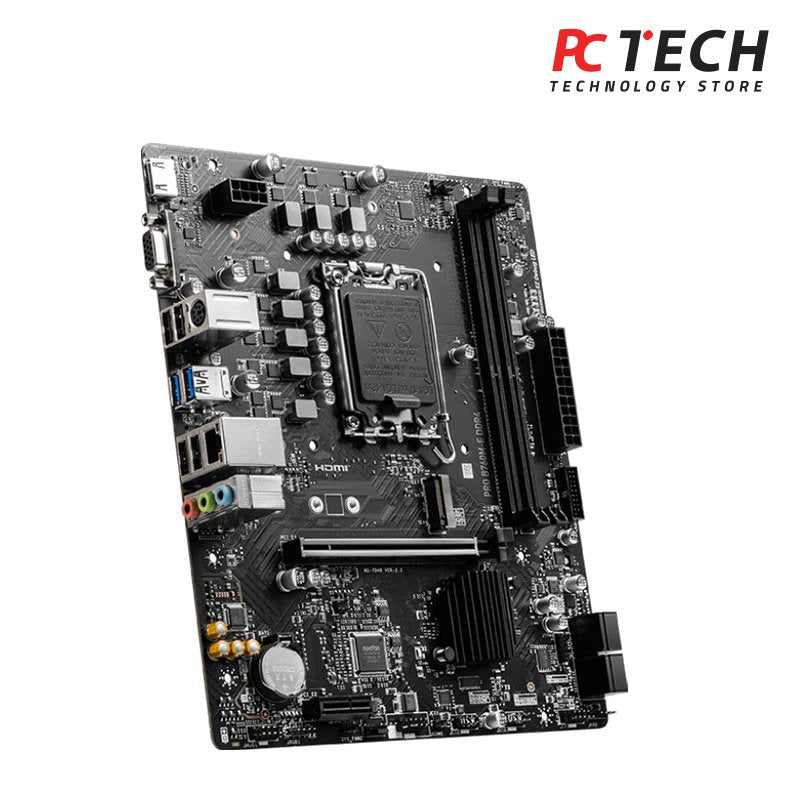

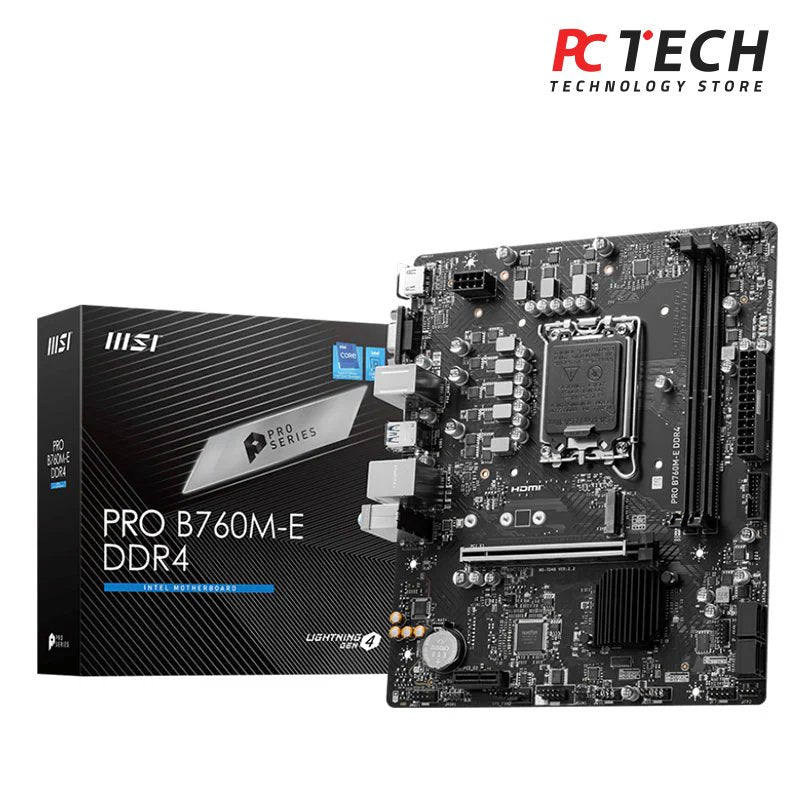

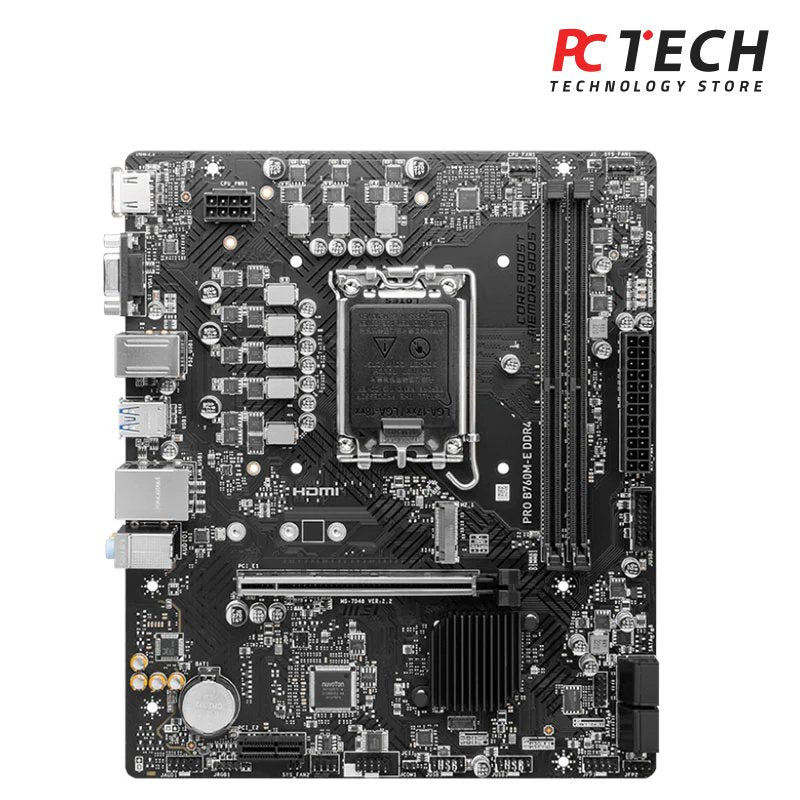

MSI PRO B760M-E DDR4 Motherboard

The MSI PRO B760M-E DDR4 Motherboard is a solid mid-range motherboard designed for users who want to build a powerful, stable, and efficient system, with a particular focus on performance, expandability, and durability. Here’s a detailed breakdown of its features:

Key Features:

CPU Support:

• Intel 12th/13th Gen Core, Pentium Gold, and Celeron Processors (LGA 1700 socket).
• Supports Core i9, i7, i5, i3, as well as Pentium Gold and Celeron processors, offering a wide range of choices depending on your performance needs.
• It also supports Core Boost for better performance in multi-core workloads, ideal for content creation, multitasking, and gaming.

Memory:

• Dual Channel DDR4 with 4800+ MHz (OC) support.
  • Maximum capacity of 64GB (2 x 32GB sticks).
  • Overclocking options for a range of memory speeds:
    • 1DPC 1R Max Speed: Up to 4800+ MHz.
    • 1DPC 2R Max Speed: Up to 4600+ MHz.
  • Intel XMP support for easy memory overclocking profiles.
• Supports non-ECC, un-buffered memory, which is typical for consumer and gaming setups.

Storage:

• M.2 Slots:
  • 1 x M.2 PCIe 4.0 x4 slot (supports 2280/2260/2242 devices). This is ideal for fast NVMe storage.
• 4 x SATA III ports:
  • Allows additional storage options using traditional SSDs or HDDs.
  • Supports RAID 0, 1, 5, and 10 for configuring multi-drive storage arrays.

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot:
  • For high-performance graphics cards, ensuring compatibility with PCIe 4.0 for better data transfer speeds.
• 1 x PCIe 3.0 x1 Slot:
  • For additional expansion cards like network cards or sound cards.

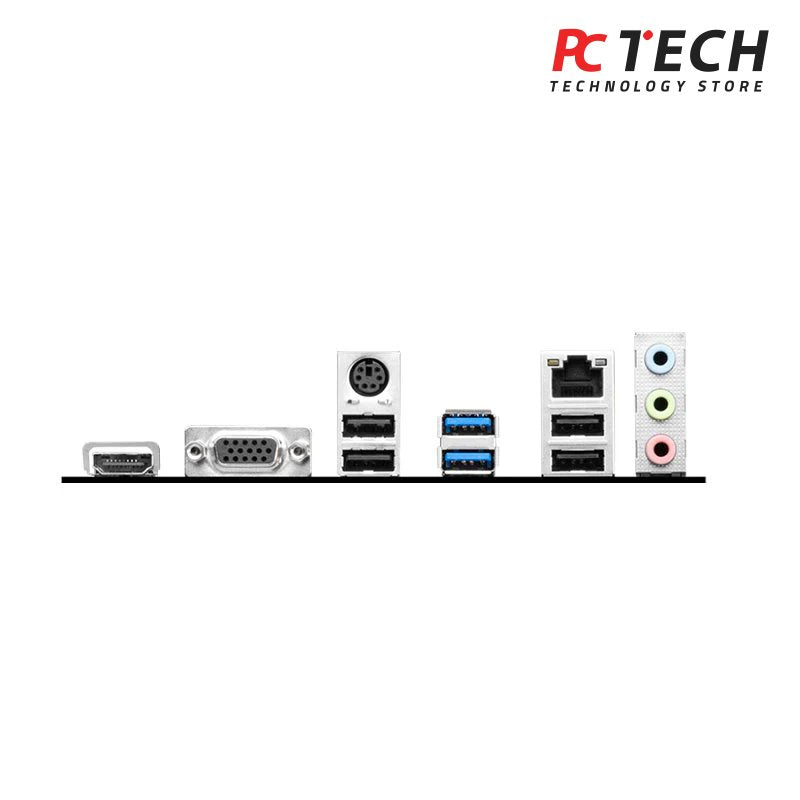

Graphics:

• • • 1 x HDMI 1.4:
      • Supports up to 4K resolution at 30Hz, available only when a processor with integrated graphics is used.
