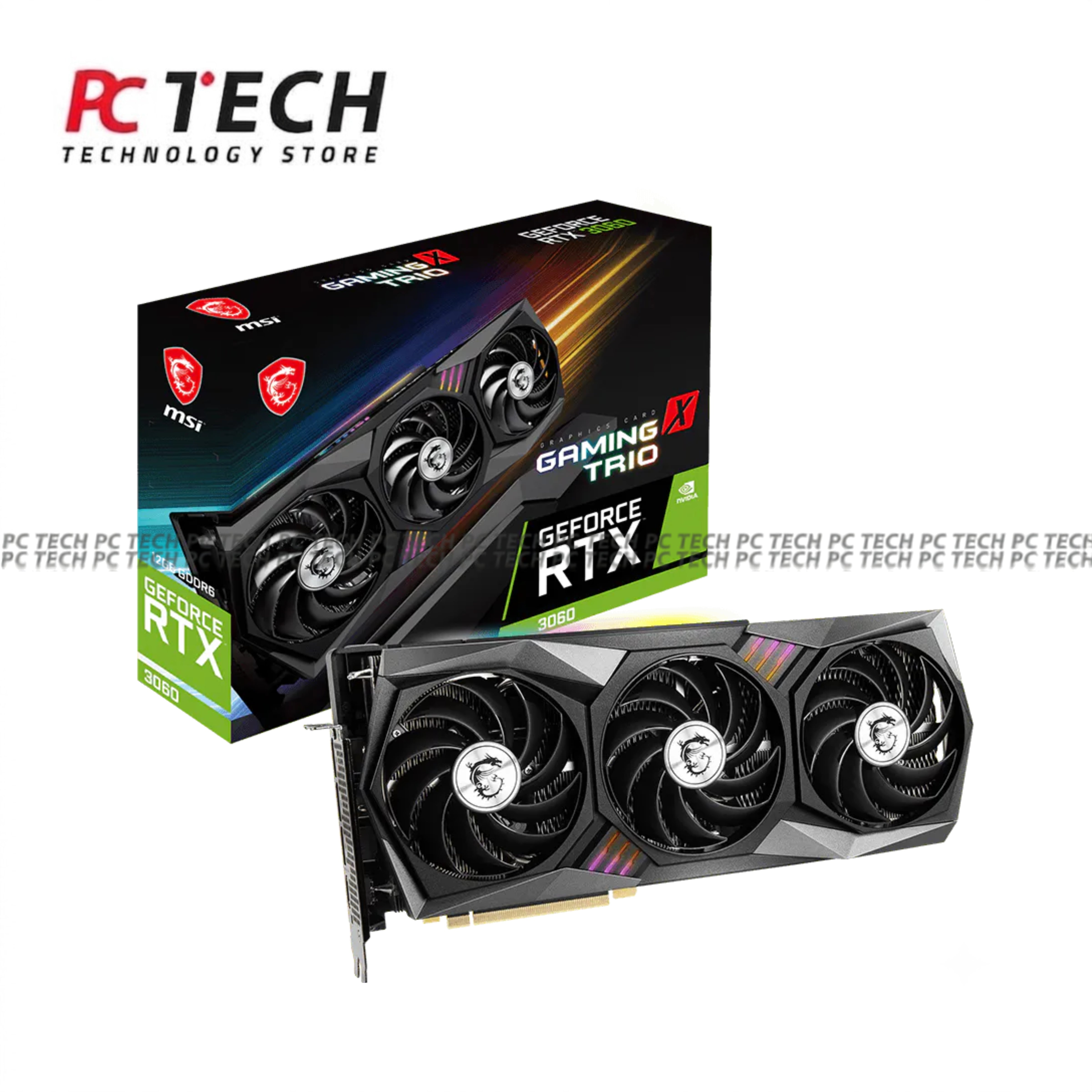

MSI GeForce RTX 3060 Gaming X Trio 12GB GDDR6 Graphics Card
The MSI GeForce RTX 3060 Gaming X Trio 12GB is a premium triple-fan graphics card designed for gaming, streaming, content creation, and graphics-intensive desktop applications.
Powered by the NVIDIA GeForce RTX 3060, the Gaming X Trio combines 3584 CUDA cores, 12GB of GDDR6 memory, a 192-bit memory interface, and an MSI factory boost clock of 1852MHz.
GeForce RTX 3060 Performance
The MSI Gaming X Trio is powered by the NVIDIA GeForce RTX 3060 GPU and includes 3584 CUDA cores.
Combined with 12GB of GDDR6 memory, the card provides the graphics performance and memory capacity required for modern gaming, creative workloads, streaming, and GPU-accelerated applications.
12GB GDDR6 Memory
The graphics card features 12GB of GDDR6 memory running at 15 Gbps through a 192-bit memory bus.
The large VRAM capacity makes the RTX 3060 suitable for games using high-resolution textures and workloads that benefit from additional graphics memory.
1852MHz Boost Clock
MSI specifies a factory Boost Clock of 1852MHz for the RTX 3060 Gaming X Trio 12G.
This differentiates the Gaming X Trio from lower-clocked RTX 3060 variants.
TRI FROZR 2 Cooling
The Gaming X Trio uses MSI's TRI FROZR 2 thermal system, designed to balance cooling performance and acoustic performance.
The cooling system combines TORX FAN 4.0, Core Pipes, and Airflow Control technology to direct airflow through the heatsink and remove heat from the GPU efficiently.
TORX FAN 4.0
MSI's TORX FAN 4.0 design links pairs of fan blades with an outer ring to focus airflow toward the TRI FROZR 2 cooling system.
The card uses its large triple-fan design to provide substantial cooling surface area for demanding gaming workloads.
Mystic Light RGB
The MSI Gaming X Trio includes Mystic Light RGB lighting, allowing compatible lighting effects and synchronization with supported MSI and third-party RGB devices.
HDMI 2.1 & DisplayPort 1.4a
The card includes 3 × DisplayPort 1.4a outputs and 1 × HDMI 2.1 output.
Its HDMI output supports up to 4K at 120Hz under the HDMI 2.1 specification, while the GPU supports a maximum digital resolution of 7680 × 4320 and up to four displays.
Power & System Requirements
The MSI RTX 3060 Gaming X Trio has a rated 170W power consumption, uses 2 × 8-pin PCIe power connectors, and MSI recommends a 550W power supply.
Actual PSU requirements depend on the complete system configuration.
Large Triple-Fan Design
The Gaming X Trio measures approximately 323 × 140 × 56 mm and weighs around 1477g.
Because of its size, case clearance should be checked before installation. MSI also designed the card with structural reinforcement and cooling-focused construction for its large heatsink assembly.
Important Notice
This product is supplied as a Box Version.
The product should not be confused with the standard MSI RTX 3060 Gaming X 12G dual-fan card. This listing is specifically for the official GeForce RTX 3060 GAMING X TRIO 12G triple-fan model.
Specifications
Brand: MSI
Series: Gaming X Trio
Official Model: GeForce RTX 3060 GAMING X TRIO 12G
GPU: NVIDIA GeForce RTX 3060
CUDA Cores: 3584
Video Memory: 12GB GDDR6
Memory Speed: 15 Gbps
Memory Interface: 192-bit
Boost Clock: 1852 MHz
Interface: PCI Express Gen 4
Cooling System: TRI FROZR 2
Fans: TORX FAN 4.0 Triple-Fan
RGB: MSI Mystic Light
HDMI: 1 × HDMI 2.1
DisplayPort: 3 × DisplayPort 1.4a
Maximum Displays: 4
Maximum Digital Resolution: 7680 × 4320
Power Consumption: 170W
Power Connectors: 2 × 8-Pin
Recommended PSU: 550W
DirectX: 12
OpenGL: 4.6
Dimensions: 323 × 140 × 56 mm
Card Weight: 1477g
Package Type: Box
The MSI GeForce RTX 3060 Gaming X Trio 12GB GDDR6 Box Version combines 12GB of graphics memory, a 1852MHz boost clock, TRI FROZR 2 triple-fan cooling, Mystic Light RGB, and modern HDMI 2.1 connectivity for high-performance gaming and desktop PC builds.
