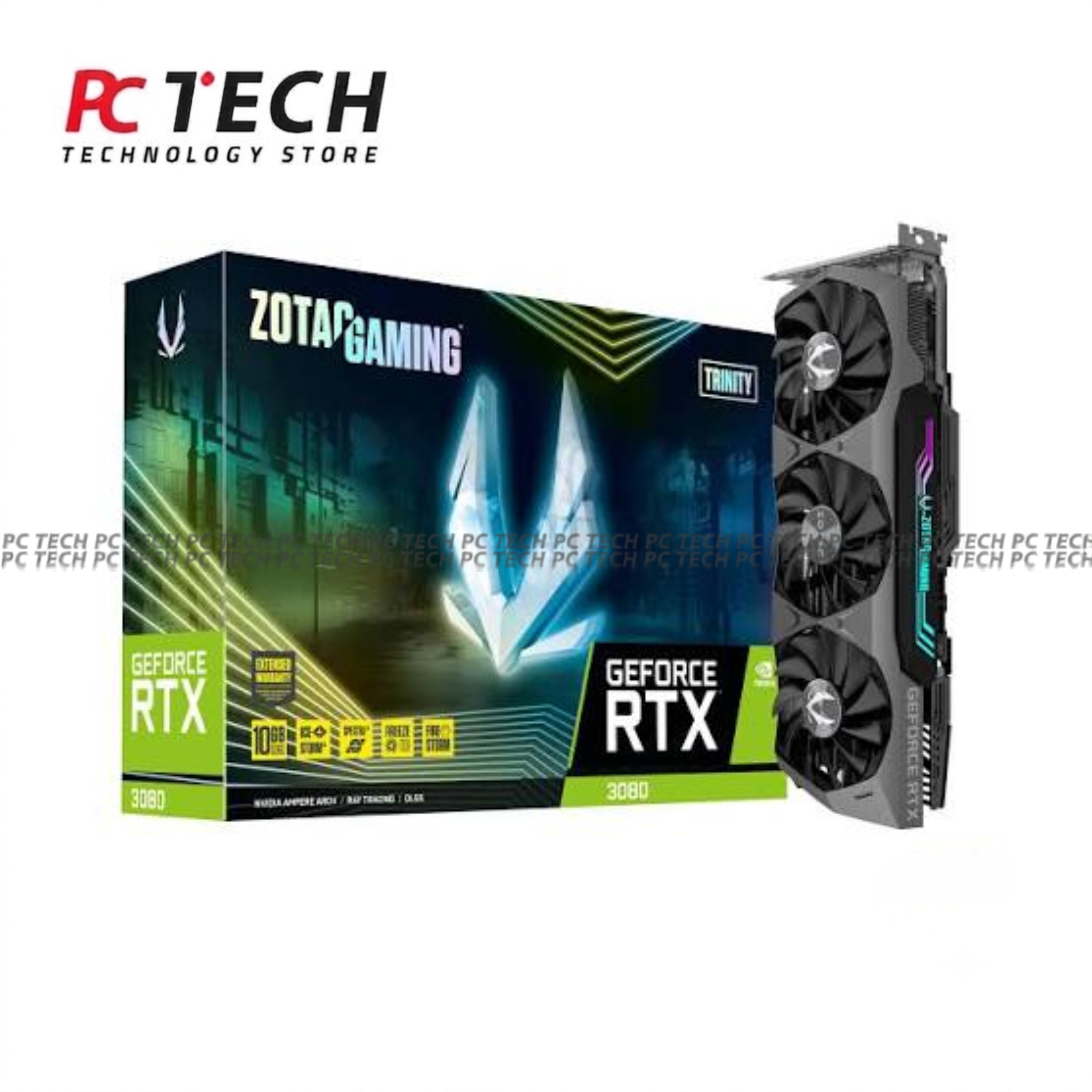

ZOTAC Gaming GeForce RTX 3080 Trinity 10GB GDDR6X Graphics Card
The ZOTAC Gaming GeForce RTX 3080 Trinity 10GB is a high-performance triple-fan graphics card designed for demanding gaming, high-resolution content, streaming, rendering, and GPU-accelerated workloads.
Powered by NVIDIA GeForce RTX 3080, the Trinity features 8704 CUDA cores, 10GB GDDR6X memory, a 320-bit memory interface, and a boost clock of 1710MHz.
Key Features
- NVIDIA GeForce RTX 3080
- 8704 CUDA Cores
- 10GB GDDR6X Memory
- 320-Bit Memory Bus
- 19Gbps Memory Speed
- 1710MHz Boost Clock
- PCI Express 4.0 x16
- IceStorm 2.0 Cooling
- Active Fan Control
- FREEZE Fan Stop
- SPECTRA 2.0 RGB Lighting
- Metal Frontplate
- RGB LED Backplate
- HDMI 2.1
- Triple DisplayPort 1.4a
- Tray Version
GeForce RTX 3080 Performance
The ZOTAC Trinity is powered by the NVIDIA GeForce RTX 3080 with 8704 CUDA cores and a boost clock of 1710MHz.
Do not confuse this with the Trinity OC, which has a higher 1725MHz boost clock. Your list says Trinity, so we're using the standard Trinity specification.
10GB GDDR6X Memory
The card features:
- 10GB GDDR6X
- 19Gbps Memory Speed
- 320-Bit Memory Bus
- PCI Express 4.0 x16
IceStorm 2.0 Cooling
ZOTAC equips the Trinity with IceStorm 2.0 Advanced Cooling, Active Fan Control, and FREEZE Fan Stop.
The design also includes a metal frontplate and RGB LED backplate with SPECTRA 2.0 RGB lighting.
Display Connectivity
- 3 × DisplayPort 1.4a
- 1 × HDMI 2.1
- Quad Display Support
- Up to 7680 × 4320 at 60Hz via DisplayPort
Power Requirements
Power Consumption: 320W
Recommended PSU: 750W
Power Input: 2 × 8-Pin
Specifications
Brand: ZOTAC
Series: Trinity
Official SKU Family: ZT-A30800D-10P
GPU: NVIDIA GeForce RTX 3080
CUDA Cores: 8704
Video Memory: 10GB GDDR6X
Memory Speed: 19Gbps
Memory Interface: 320-bit
Boost Clock: 1710MHz
Interface: PCI Express 4.0 x16
Cooling: IceStorm 2.0
RGB: SPECTRA 2.0
Power Consumption: 320W
Recommended PSU: 750W
Power Connectors: 2 × 8-Pin
Slot Size: 2.5 Slot
Dimensions: 317.8 × 120.7 × 58 mm
Package Type: Tray
Important Notice
This product is supplied as a Tray Version.
ZOTAC produced both standard and LHR versions of the 10GB Trinity. Since your inventory description doesn't specify LHR, the Shopify listing should not state LHR or Non-LHR until the Part Number on the physical card confirms which version is in stock. Both official versions share the key specifications listed above.
